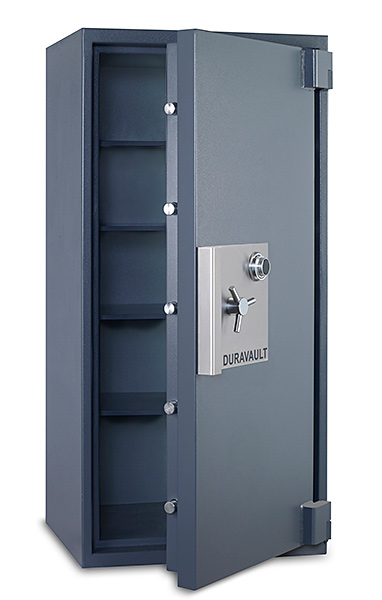

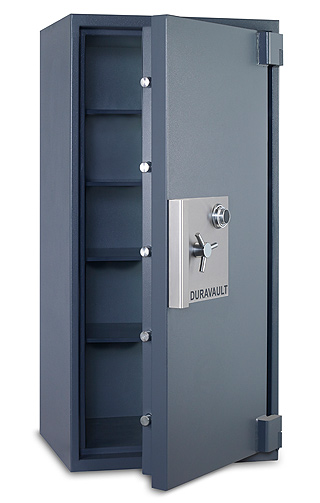

Duravault TL30 Series

UL TL30 High Security Composite Burglary Safe

The Duravault offers the ultimate in TL30 protection.  With its high-tech 2 1/2” thick body and 5 1/2" thick door utilizing our proprietary barrier material, modern high-strength alloy, sophisticated glass relocking system, high security combination locks and massive boltwork, the Duravault is our latest generation of TL30’s to successfully receive UL approval.

Two-Hour Fire Resistance

The Duravault TL30 has been successfully tested by an independent laboratory and boasts a two-hour manufacturer’s fire rating for your peace of mind.

Locks

UL listed Group 2M combination lock with spy-proof dial.

Boltwork

Massive full length stainless steel locking bar.

Glass Relockers

A sophisticated tempered glass relock system activates multiple independent relockers to protect against drilling, torch and explosive attacks.

Interior

All models are supplied with adjustable shelves.

Options Available

UL listed electronic digital locks, Time locks, Inner compartments / lockers

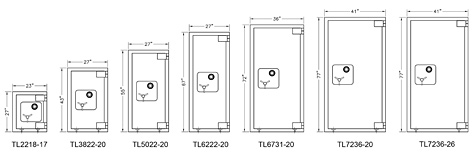

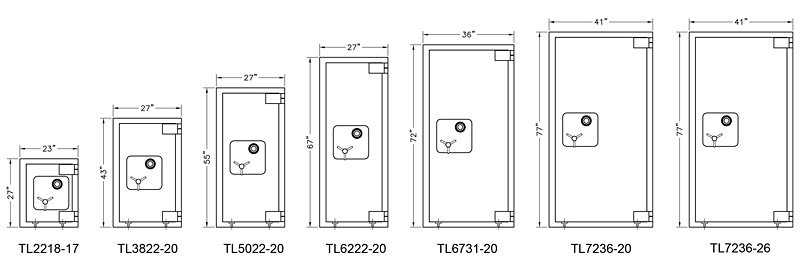

TL30 Models

Specifications

Model Interior Dimensions (in) Exterior Dimensions (in) Capacity Weight
height width depth height width depth (ft3) (lbs)
TL2218-17 22 18 17 27 23 25 1/2 3.9 950
TL3822-20 38 22 20 43 27 28 1/2 9.7 1,730
TL5022-20 50 22 20 55 27 28 1/2 12.7 2,125
TL6222-20 62 22 20 67 27 28 1/2 15.8 3,240
TL6731-20 67 31 20 72 36 28 1/2 24.0 3,345
TL7236-20 72 36 20 77 41 28 1/2 30.0 4,050
TL7236-26 72 36 26 77 41 34 1/2 39.0 4,445

Add 2” to depth for handle projection.  All specifications are approximate and subject to change without notice.

Door Swing Dimensions (in)
Model A B
TL2218-17 46 3/8 42 1/4
TL3822-20 53 3/8 50 1/4
TL5022-20 53 3/8 50 1/4
TL6222-20 53 3/8 50 1/4
TL6731-20 62 3/8 68 1/4
TL7236-20 67 3/8 78 1/4
TL7236-26 73 3/8 78 1/4
TL7236
