Commercial | Fire Resistant File Cabinets

Product PDF

Gardex Lateral Filing Cabinets

Features

Gardex fire-resistant lateral filing cabinets come equipped with gang lock, selective locking system, suspension system and a 3-arm SwayGard system to minimize torque.

All drawers come equipped with integral rails for left to right filing of documents. Cross rails for back to front filing are available at no extra charge.  The Gardex “Interlock” system allows only one drawer to open at any time to prevent tipping.

Five Year Warranty on All Parts and Labour.

All filing cabinets carry a lifetime after-fire warranty that covers you up to the replacement of the unit.

  • Listed by Underwriters Laboratories Inc.
  • Key-Operated plunger lock system
  • Gard-lite insulation
  • Independent insulation surrounds each drawer
  • Rust-resistant textured finish

Optional Equipment

  • Interior cross tray, to be set on inside drawer, permits the filing of cheques and cards of various dimensions.
  • Factory-installed drawer-in-a-drawer factory installed option that divides the interior of each drawer.
  • Security locks. Independent security can be added for one or more drawers with optional key locks, combination locks, or both.
  • Caster base.

Specifications

Model Interior Dimensions (in) Exterior Dimensions (in) Drawers Weight Standard Equipment on all Cabinets
height width depth height width depth   (lbs)
38 3/4” Wide Lateral Filing Cabinet – U.L. Listed 177°C (350°F) – 1 Hour
GL-404 10 1/2 32 1/2 15 1/2 55 38 3/4 23 1/2 4 960 Gang lock filing all drawers
GL-403 10 1/2 32 1/2 15 1/2 42 38 3/4 23 1/2 3 740 Safety system allowing one drawer to be opened at a time
GL-402 10 1/2 32 1/2 15 1/2 29 38 3/4 23 1/2 2 538 SwayGard suspension system
44” Wide Lateral Filing Cabinet – U.L. Listed 177°C (350°F) – 1 Hour
GL-404-44 10 1/2 37 7/8 15 1/2 55 44 23 1/2 4 1030 Gang lock security all drawers
GL-403-44 10 1/2 37 7/8 15 1/2 42 44 23 1/2 3 800 Safety system allowing one drawer to be opened at a time
GL-402-44 10 1/2 37 7/8 15 1/2 29 44 23 1/2 2 590 SwayGard suspension system

Made in Canada.

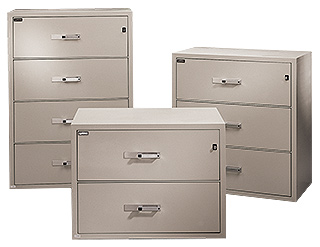

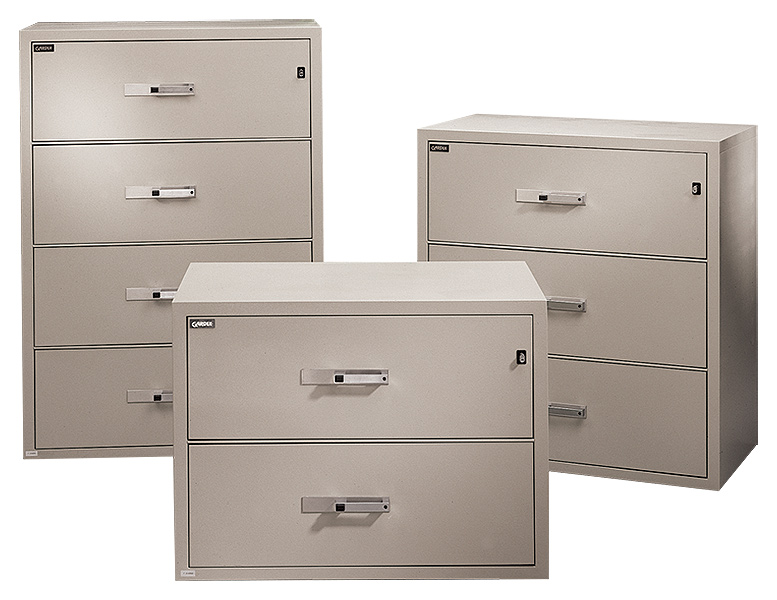

Lateral Filing Cabinets

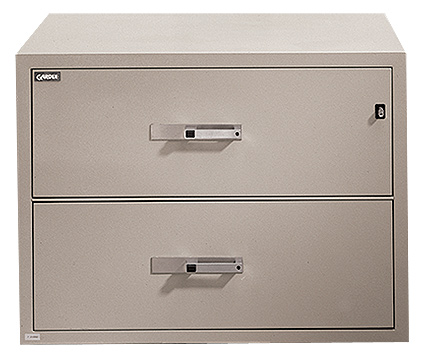

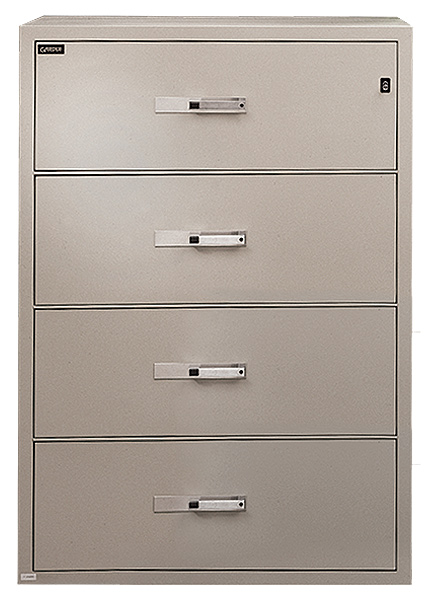

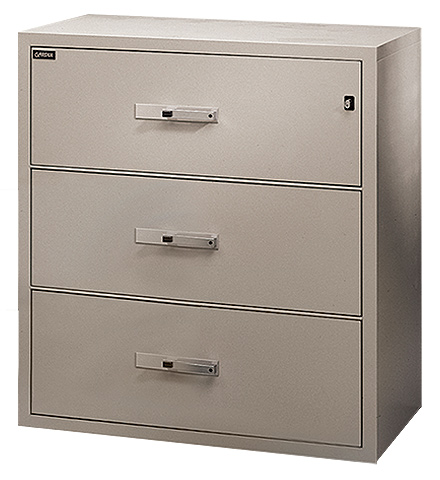

Lateral Filing Cabinet 4 Drawers Lateral Filing Cabinet 3 Drawers Lateral Filing Cabinet 2 Drawers
