Access Complete Range of Vault Doors

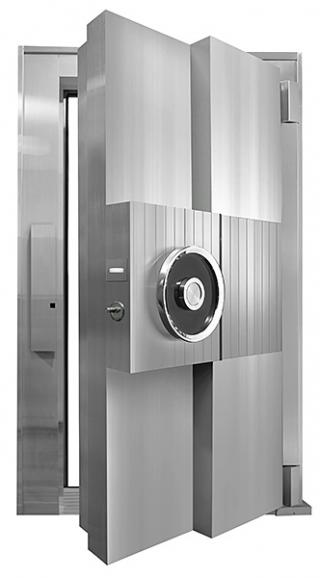

The Water Tight Vault Door has a complete rubber seal around the door opening and a pressure system. When the door is closed, it seals any opening or gaps that water might enter.
To be used where there is a possibility of a flood or in a low lying area.
Construction
Access Vault Doors are made of highest-quality proprietary materials.
Stainless Steel Finish
All exposed metal surfaces are finished in a gleaming stainless steel including the massive full length locking bar, door edges and jamb area creating a totally maintenance free door.
Wide Clear Opening
The large 36” clear opening and flat sill allow convenient access for people and carts.
Deluxe Day Gates
Features complete stainless steel framework with dark tempered glass.
Locking System
Includes 2-4 wheel Group 1, UL Listed combination locks.
Timelock
Underwriters Laboratory (UL) listed 3 movement time locks are concealed behind the flush panel on the back of each door.
Specifications
|
Class 1 |
Class 2 |
Class 3 |
Clear Opening |
W |
36" |
36" |
36" |
H |
78" |
78" |
78" |
Overall Thickness |
9 1/2" |
10 1/2" |
12 1/2" |
Swing Radius |
R |
41 7/8" |
41 7/8" |
41 7/8" |
Weight |
2910 lbs |
3456 lbs |
4340 lbs |
- Swing: 180° right or left as required
- Floor level: Flat sill with full 36" clear opening
